Description
BBC Bircher Smart Access mat accessories are used for installing and fixing contact mats. Ramp rails and corner connectors reduce the risk of tripping and, in addition, are able to withstand pneumatic or rubber tyres to the weight specified in the data sheets.
The Z-rails are placed on the side facing the machine in order to fix the safety mats down. Then the fixing holes are drilled and the Z-rails screwed into place. The ramp rails are then arranged around the other sides of the safety mat system and screwed down in the same way.
BBC Bircher Smart Access recommends using connection strips to connect the individual mats, in order to pre- vent dirt from collecting under the safety contact mat system. An air gap of about 1 mm makes it possible to replace an individual mat within a system.

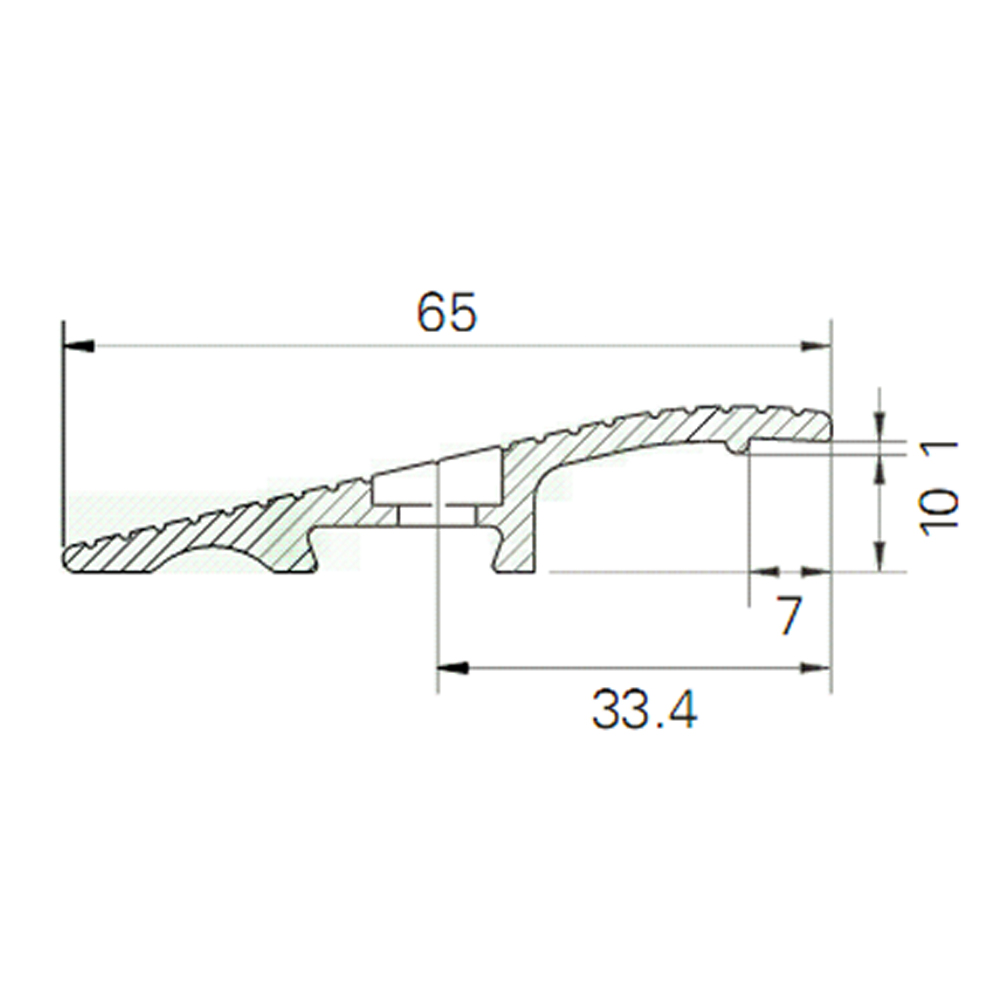

Order Code: ES-RR- (Specify Length)Â Â PLEASE NOTE:Â PRICE PER METER (MAX. 6m)
- Colour: AL natural
- Material: AIMgSi 0.5
- Weight: 640 g/lin. m
- Load Rubber Wheel: 10,000 N
- Pneum Wheel: 20,000 N
