Description

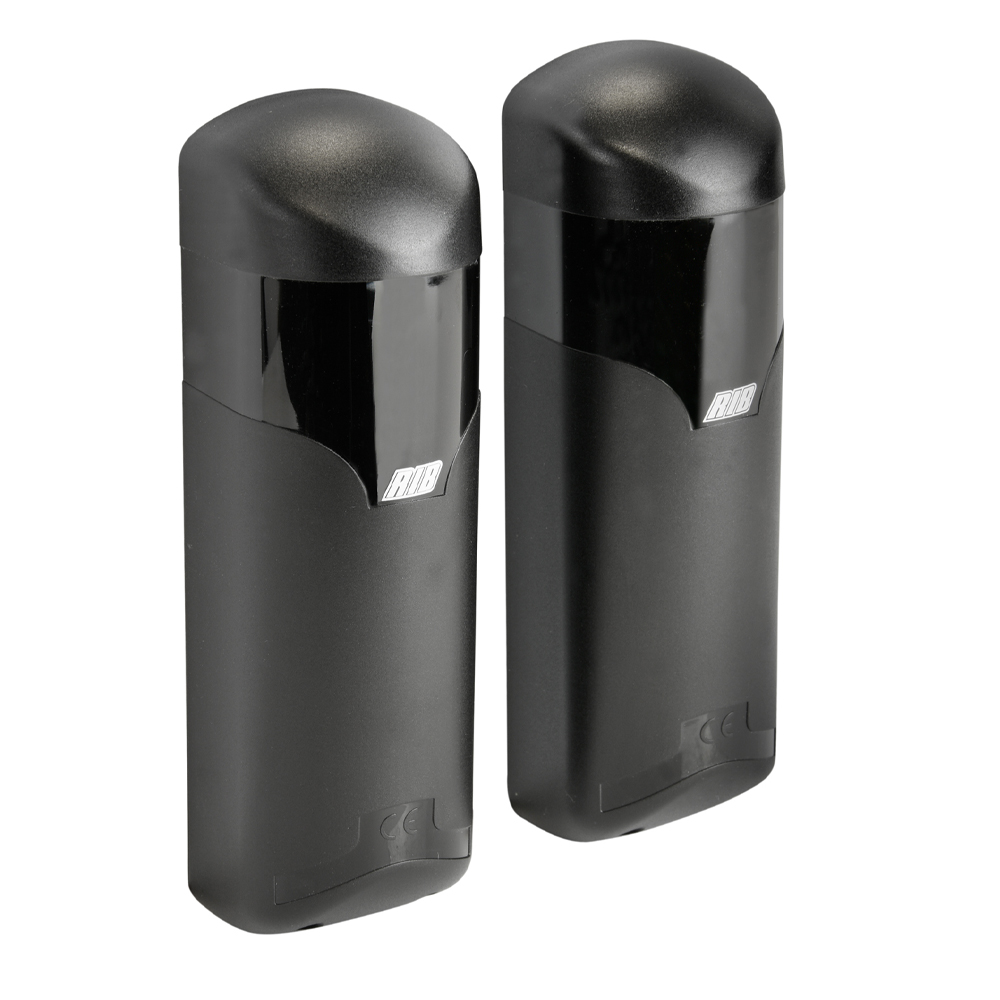

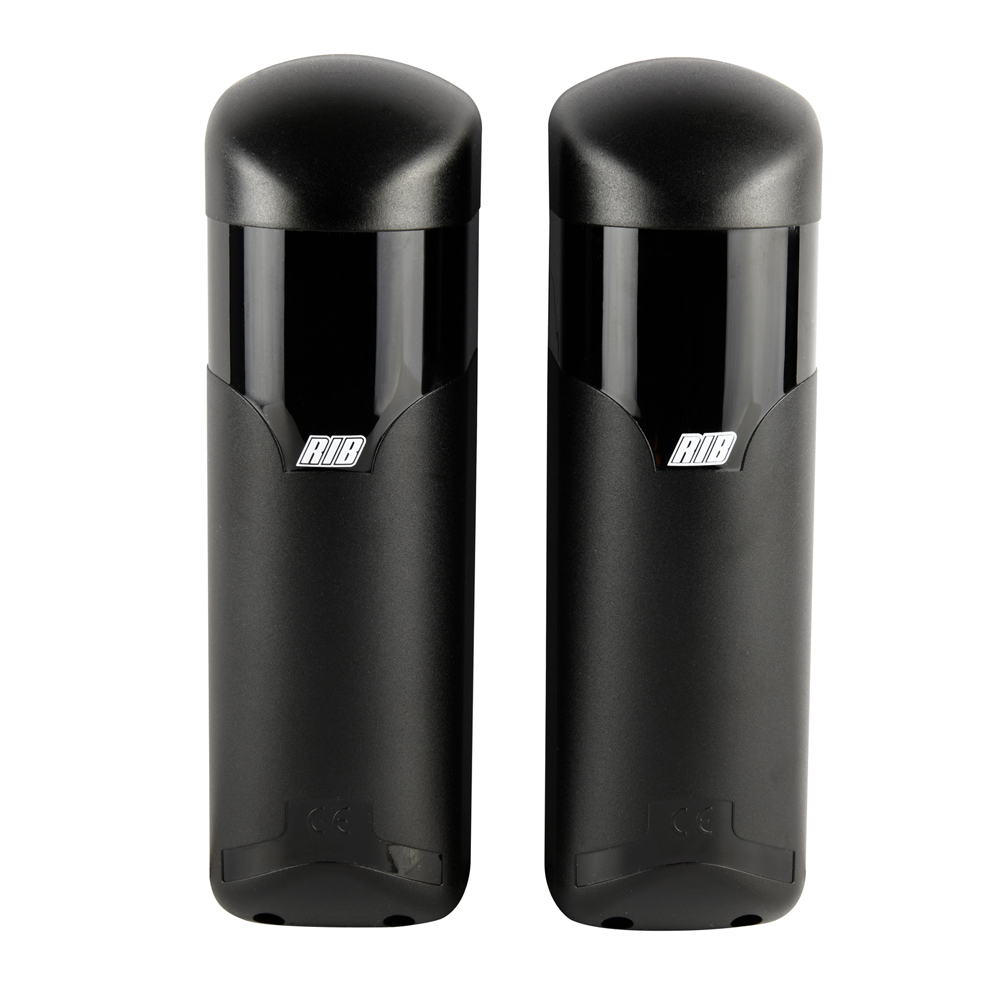

NOVA Semi-wireless photocell Pair (TX & RX) from RIB Automation
The RIB range of NOVA Infra Red through-beam Photocells available from IN2 Access are designed with Flexibility and easy installation in mind. This product is the semi-wired version.
Wireless version is available here
Hardwired version available here

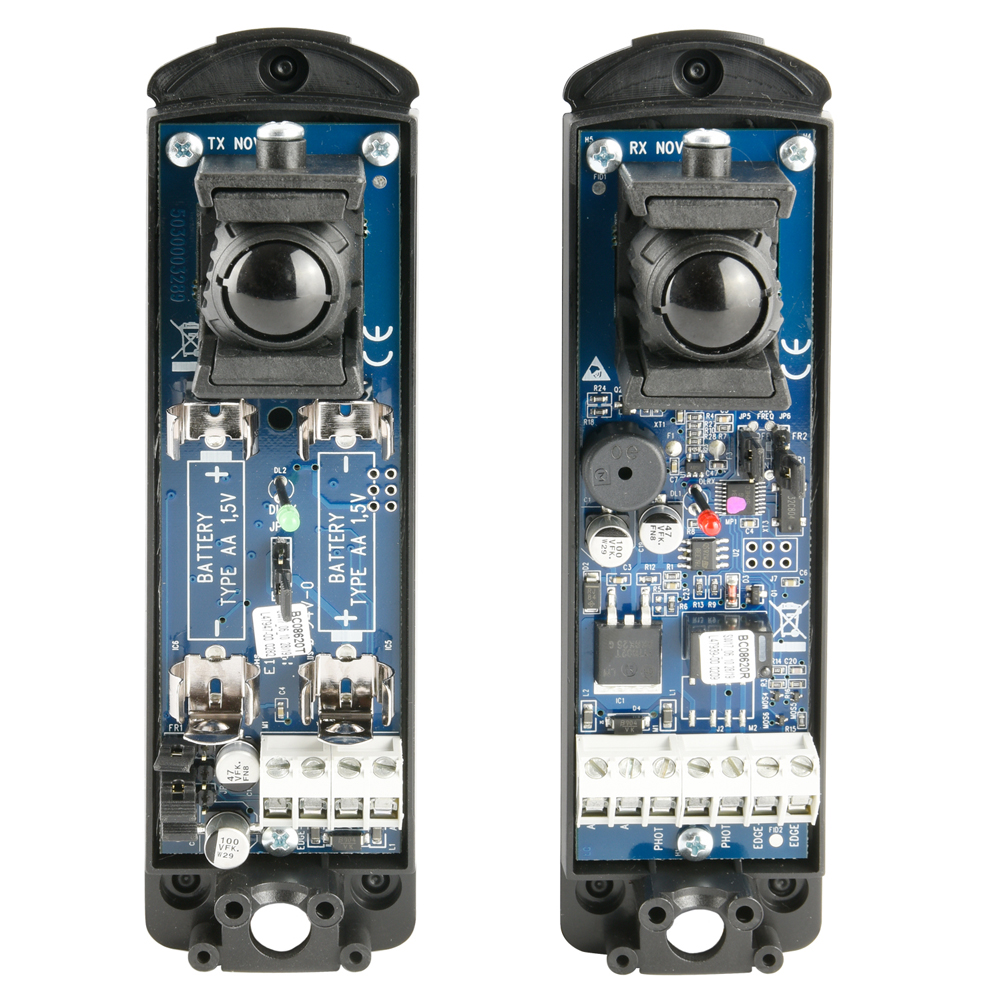

This photocell pair can be hard-wired or battery operated with the use of 2 x AA lithium or alkaline batteries (selectable).
Dimension: 150 x 45 x 41mm (H x W x D)
Operating voltage: RX: 12 or 24 VAC/DC
TX: 12 or 24 VAC/DC or 2 x 1.5VDC AA batteries
Range: 1 – 15 or 1 – 30m (selectable)
Type of light: LED 890nm. With 2 selectable frequencies
LED indication:
• Green – power on
• Red: on – aligned and working.
• Flashing – misaligned, over max. range or dirty lens.
• Off – activated or out of alignment
Angle aperture: +90°/-90° horizontally and +5°/-5° vertically
Output: NO/NC
IP rating: IP44
Operating temperature: -20°c – +60°c
Kit includes: TX & RX
Batteries/wiring: Screw terminal (max. 1mm² cable), battery option on TX (batteries not included)
