Description
Combination sensor from BBC Bircher Smart Access. The complete motion and presence detector for activating and protecting sliding doors.
Use on sliding doors
The PrimeTec activates the door on one side, protecting the primary closing edge at the same time with its infrared curtain. On the other side of the door, PrimeMotion takes on the role of an opening sensor.

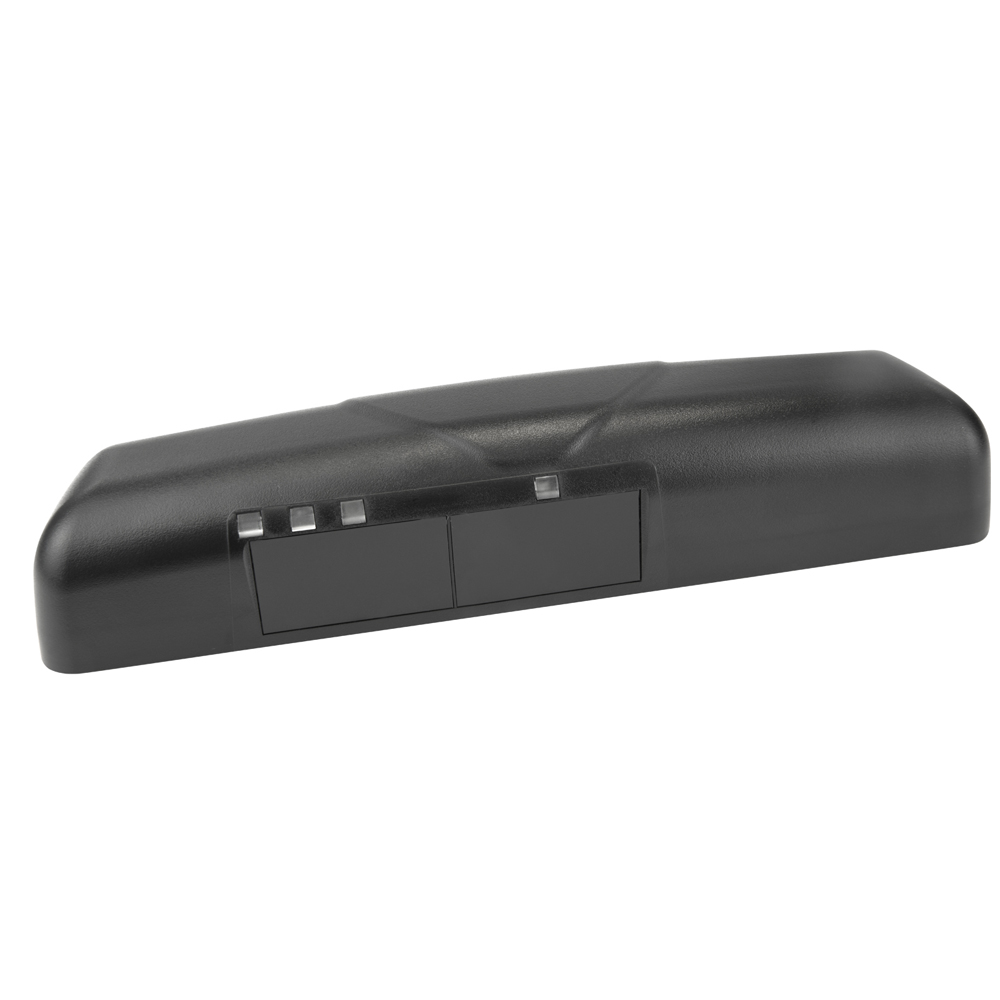

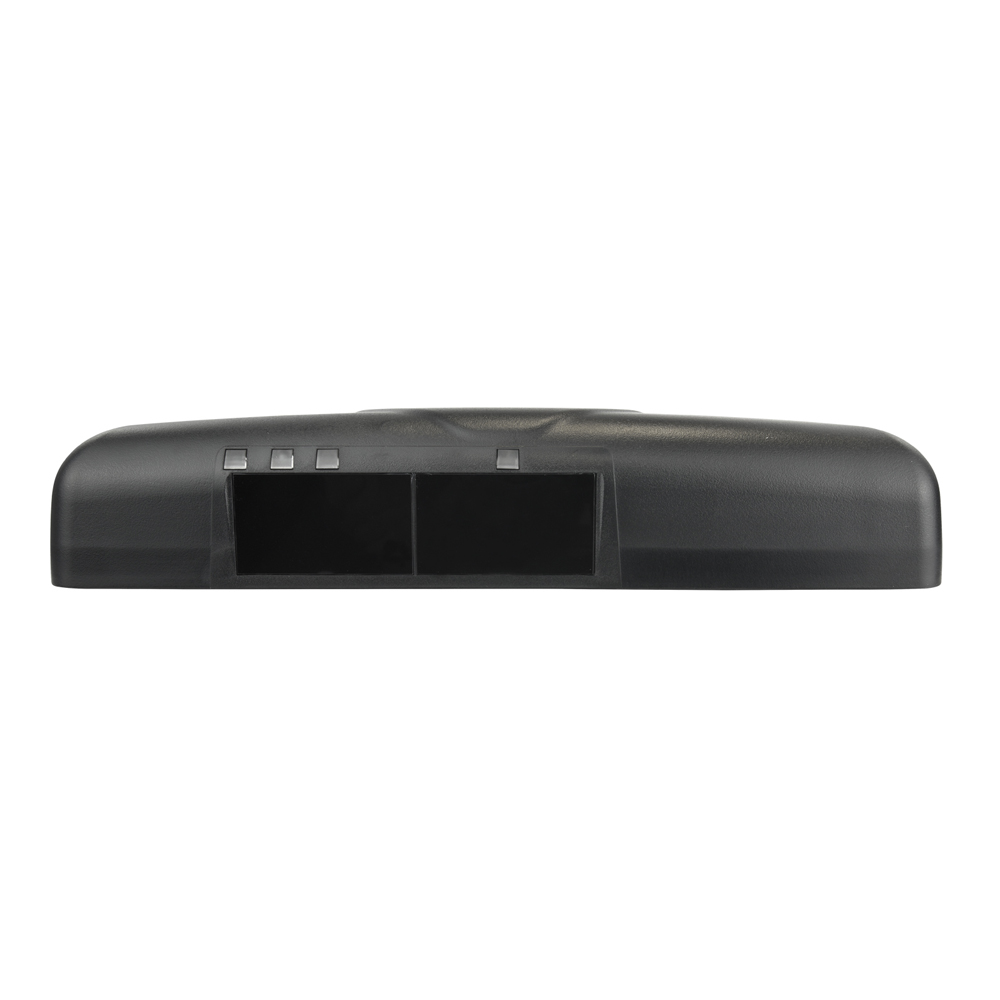

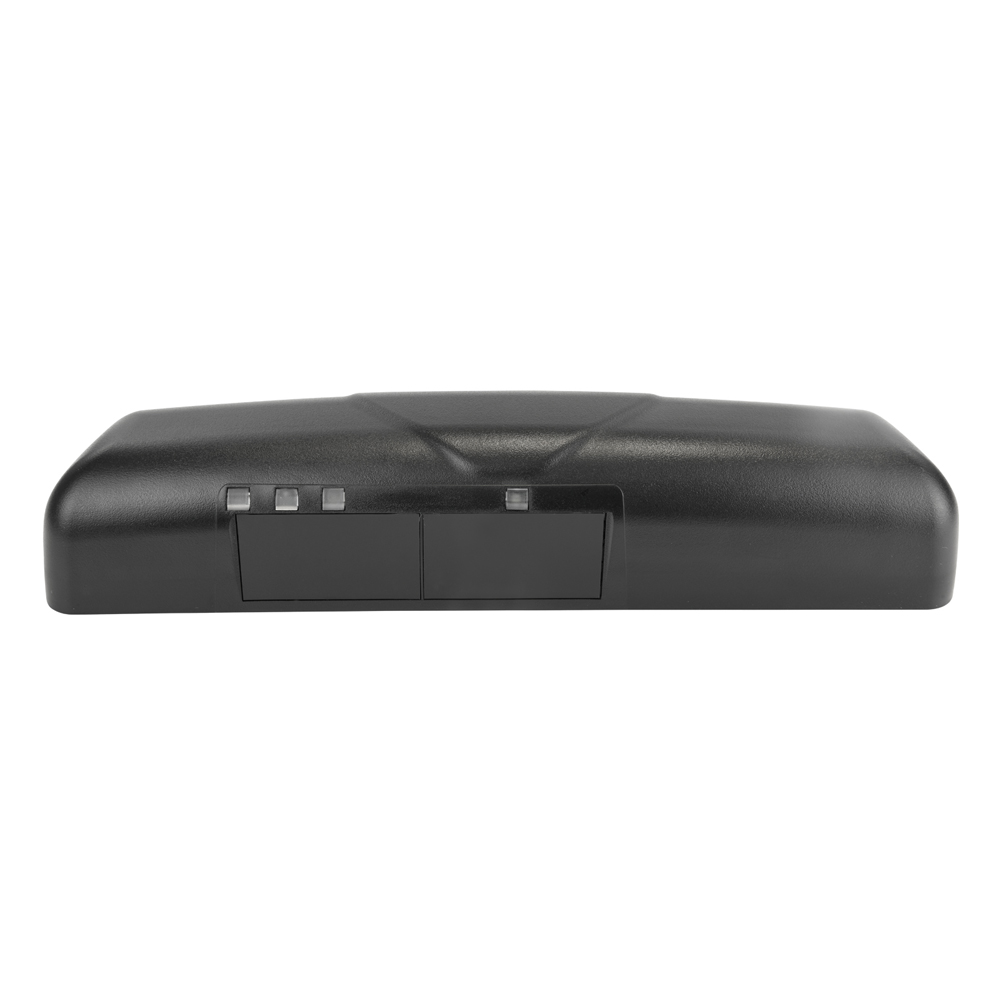

PrimeTec BÂ
The complete motion and presence detector for activating and protecting sliding doors. The PrimeTec B has been certified in accordance with EN 16005 and attains performance level PLd, cat. 2.
Benefits include:
- Combined radar / Active infrared sensor
- Simple and straightforward operation via buttons and LCD
- Precise positioning of the AIR curtain thanks to inclination angle display on a clear scale
- Automatic recognition of the test input
- Can even be used with wide passage dimensions and high-level lights
- Mounting height up to 4 metres with an AIR field width of 4 metres
- The AIR curtain replaces the light barrier
- 11.5–32 V DC
- 260 × 60 × 48.5 mm (L×W×D)
- IP 54
- EN 16005
