Description

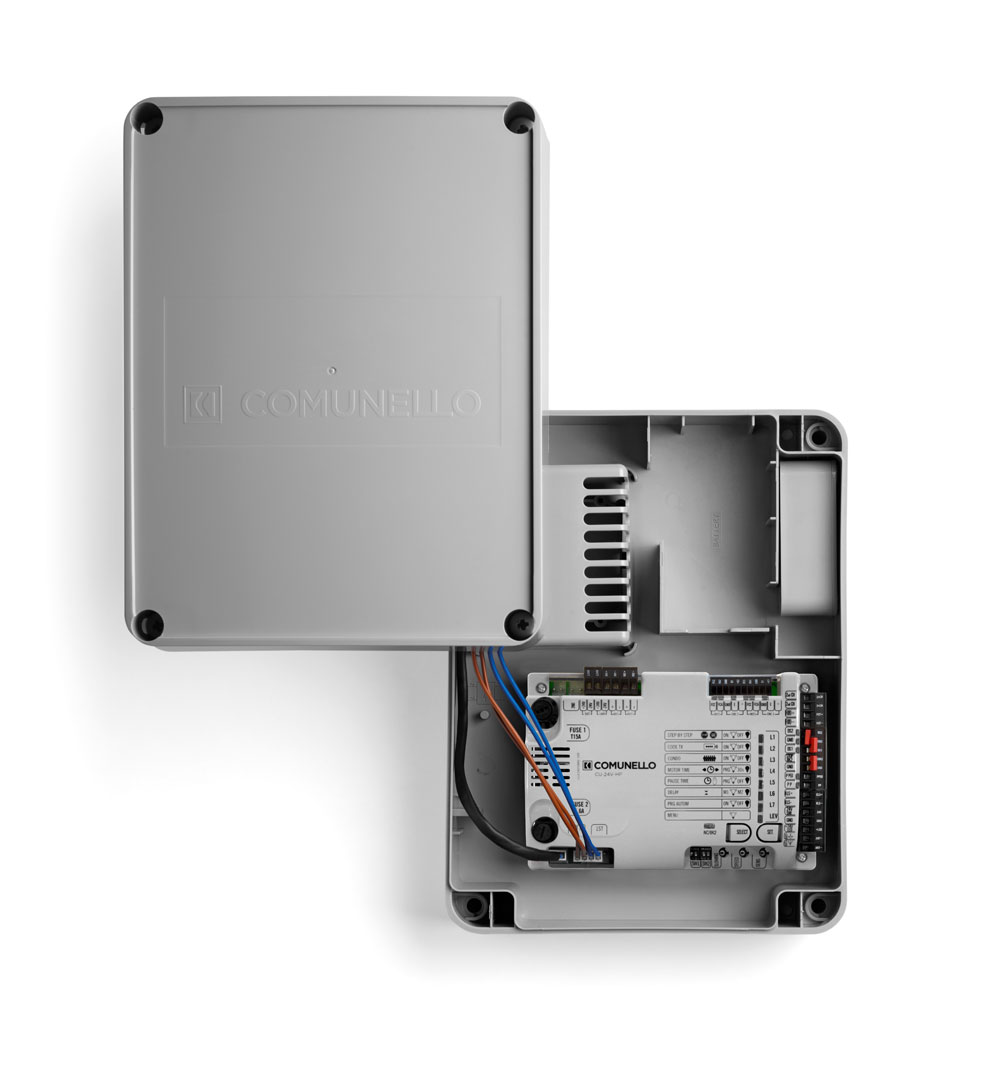

Microprocessor operating logic, double encoder input and limit switch for two motor outputs. Simple and intuitive combined programming of leds, trimmers and dip switches.  Obstacle detection function for 230 V motor with encoder. Adjustment of force, deceleration, wide range of functions, inputs and outputs. Equipped with incorporated radio receiver and removable memory of codes and settings. Automatic programming. Foto test. Wide range of selectable functions. Second radio channel. Programmable 8K2 input
- Colour: Grey enclosure
- Flashing light output no.1: 230 V~ 500 W max
- Flashing light output no.2: 24 V~ 4 W max.
- Motors output: 230 V~ 2 x 500 W max.
- Electric lock output: 12 Vcc 15 W max.
- Photocells power supply: 24 V 5 W max. AC
- Pilot light output: 24 V~ 4 W max.
- Working temperature: -20 ÷ 55 °C
- Radio receiver: 433 Mhz
- Transmitters: 18 Bit of Rolling Code
- Max TX codes stored: 120 (CODE PP o CODE PED/2°CH)
- Board dimensions: 160 x 107 mm.
- Fuse 1: T 6,3 A 250V (Delayed fuse)
- Fuse 2: T 0,5 A 250V (Delayed fuse)
- LED output: 24Vcc Pilot light
- Services output: 24 V 5 W
