Description

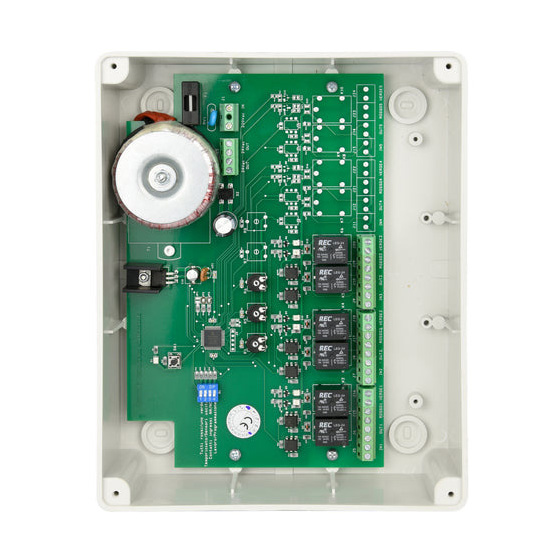

The DC3SEM2L universal electronic control unit has been devised for the management of three traffic lights with two lenses, in situations where access driveways are narrow and require alternate transit (garage, parking, residence, etc.).
Specifications:
- Power supply: 230 Vac
- Operating temperature: -20 °C / +50 °C
- Absorption max supported by relays (10 A) using 24 V: 240 W
- Absorption max supported by relays (10 A) using 230 V traffic lights: 2300 W
- Inputs dedicated to inbound traffic sensors, opto-isolated, settable for NC or NO contacts
- Inputs dedicated to outbound traffic sensors, opto-isolated, settable for NC or NO contacts
- Trimmer to adjust the green light time for each channel / semaphore (between 10 seconds and 2 minutes)
- Memorization of the sequence of arrivals during operation
- Filter on 24 Vac input for sensors in vehicle entry positions and in vehicle exit positions
- 24 Vac outputs for sensor power supply (Max 400mA)
- IP container protection (ABS V-0): IP 56
- size: 237 x 183 x 96 mm
