Description

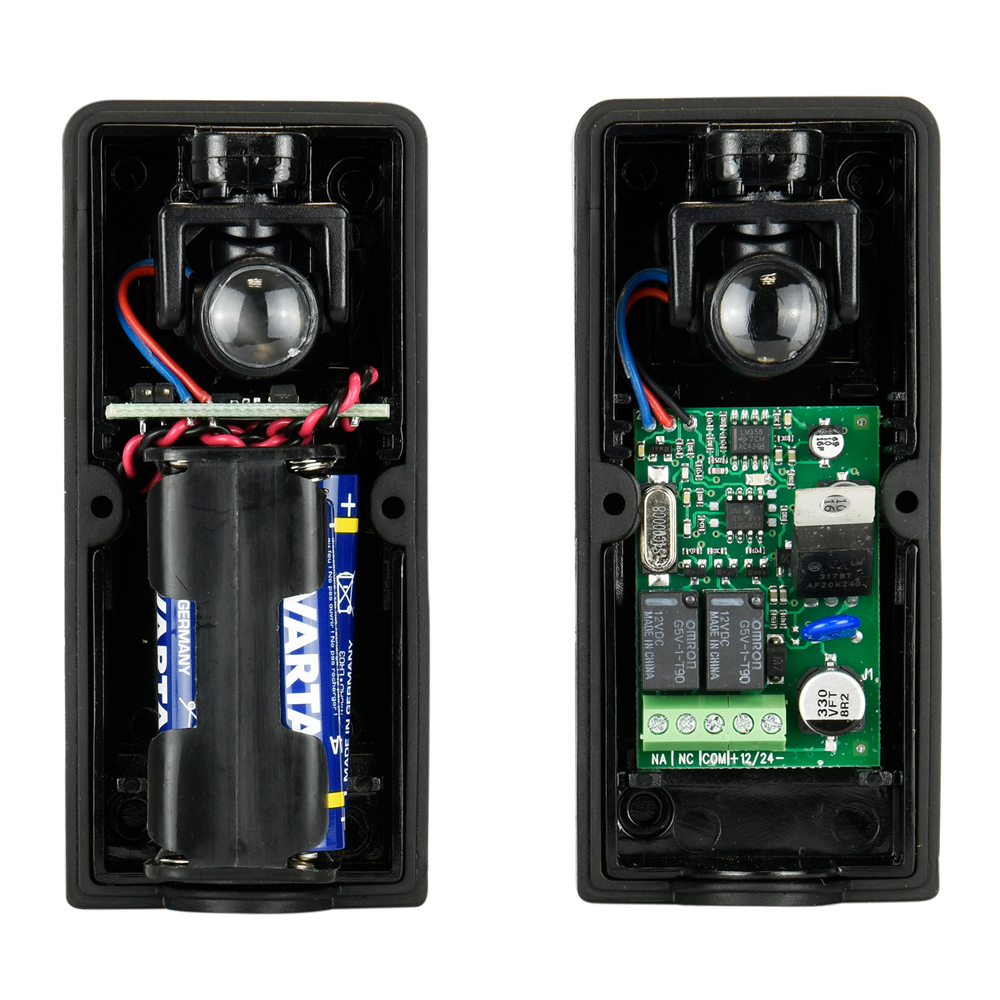

Semi-wireless through beam infrared photocell pair with anti-vandal housing. Hard wired receiver and battery powered transmitter. The optics can be adjusted 180° horizontally and 15° vertically. The transmitter cannot be hardwired.
Dimension: 100 x 45 x 45 mm (H x W x D)
Operating voltage RX: 12 – 24 VAC/DC
TX: 4 X AAA 1.5V batteries
Range: 8 – 15m
Angle aperture: 180˚ horizontally and ±15˚ vertically optic movement
IP rating: IP55
Housing: Anti-vandal metal
Kit includes: TX & RX
Batteries/wiring: Screw terminals
